Water Softeners

The Purpose of a Water Softener

The water softener is an important part of your water treatment system. The main purpose of a water softener is to remove the iron and hardness minerals from your water. As the Water flows through the water softener, iron particles attach themselves to the cation resin beads inside of the softener tank. Once your tank filters a certain amount of water, the softener will clean itself by rinsing the tank with salt water to oxidize the iron particles. This process is called ion exchange, once the softener is cleaned, the backwash water is flushed to an outside sewer line, drywell, or septic. With the back pressure of the well pump and brine solution your softener is ready for its next filtering cycle.

*Sizes of tanks vary depending on water treatment needs

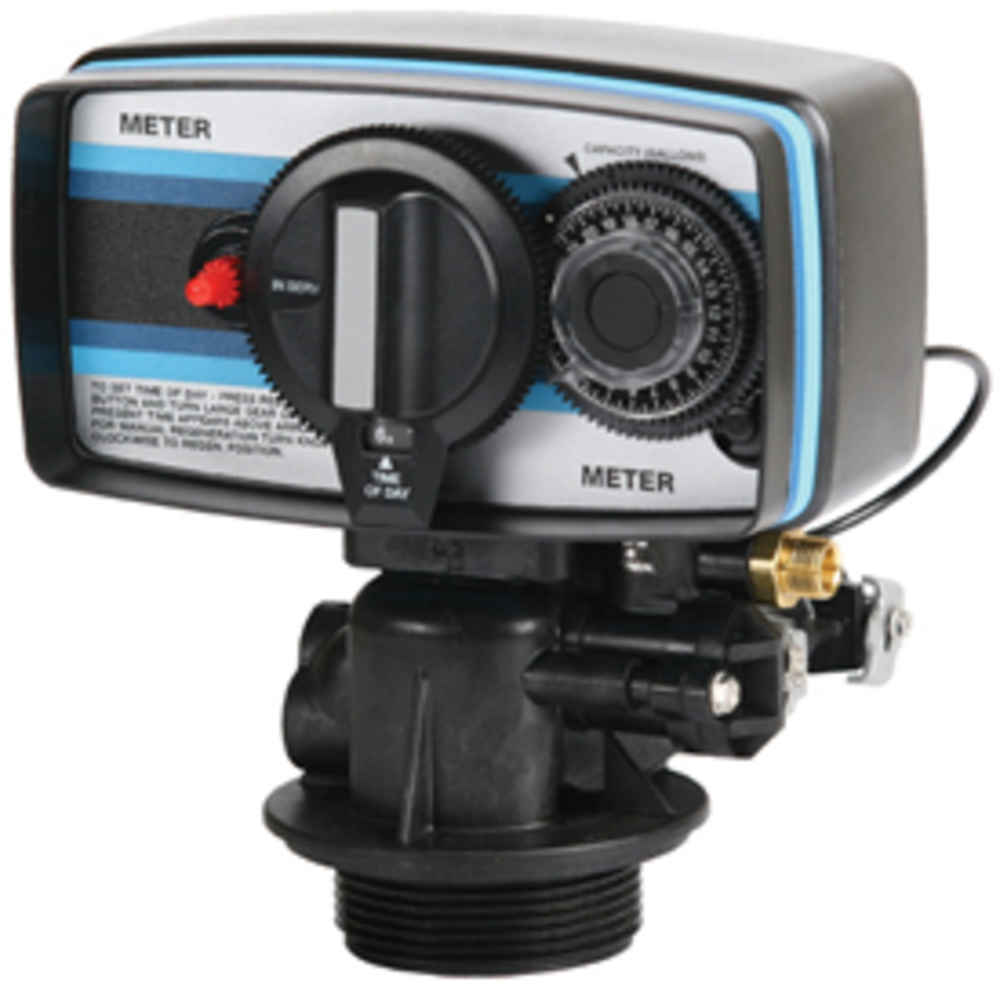

5600 Time Clock 32k

  • Tank size: 10" x 48"
  • 1 Cubic Foot of Cation Mineral
  • Mineral used: Cation Resin beads
  • Treats: Iron and Hardness minerals
  • 3/4" inlet/outlet control valve
  • 10-16 gpm flow rate

*Time Clock backwashes on set days rather than based on amount of water used

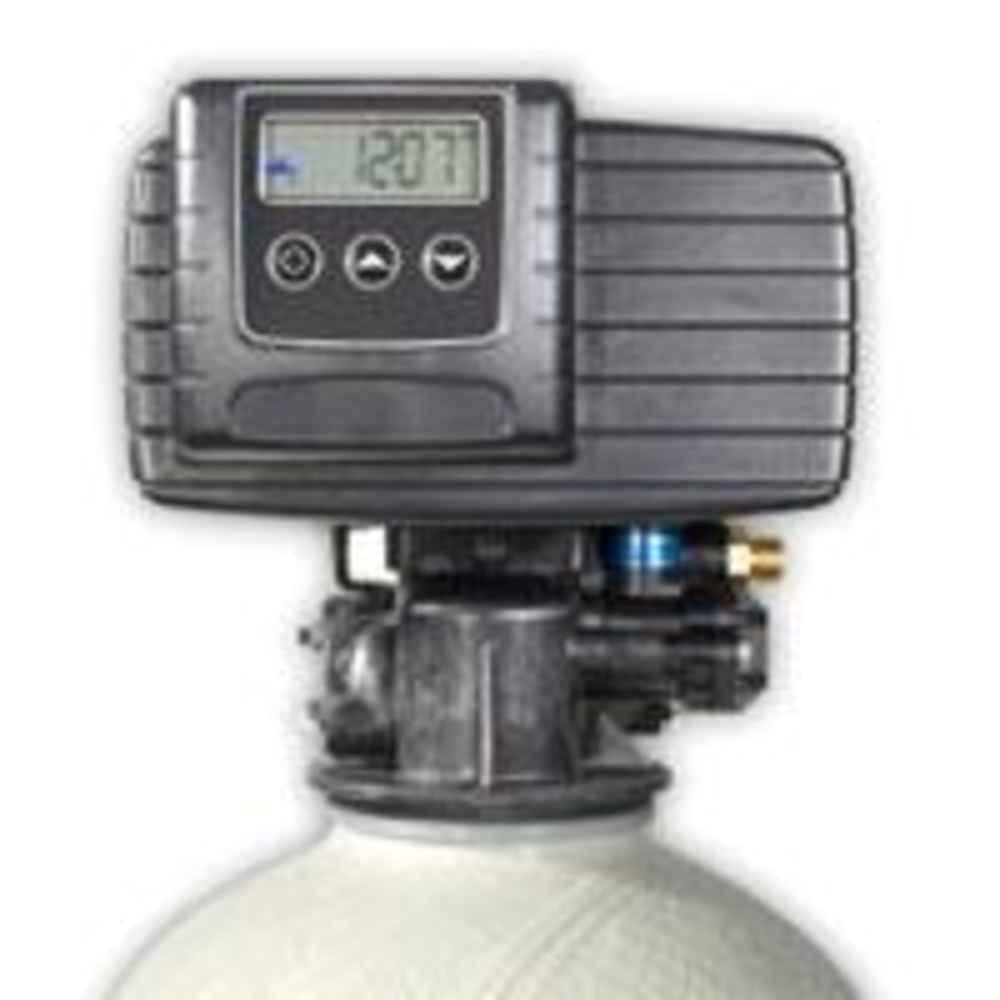

5600 Metered 32k /SXT Digital

  • Tank Size: 10" X 48"
  • 1 Cubic Foot of Cation Mineral
  • Mineral used: Cation Resin beads
  • Treats: Iron and Hardness minerals
  • 3/4" Inlet/outlet control valve
  • 14-24 gpm flow rate

*Digitally programmed head calculates water through a Meter and backwashes based on total water used and can help save with salt usage

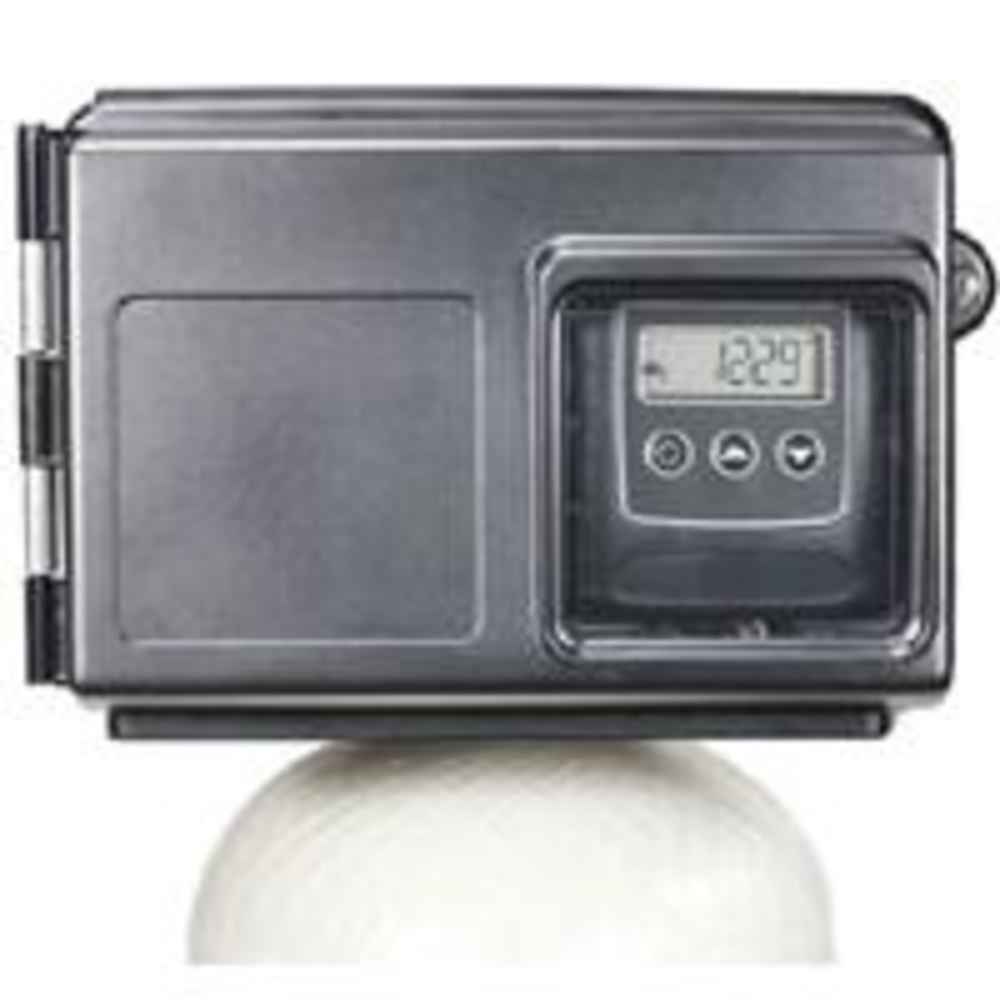

2510 Fleck SXT Control Valve 64k Water Softener

  • Tank size: 12" x 48"
  • 2 Cubic Feet of Resin Mineral
  • Mineral used: Cation Resin
  • Treats: Iron and Hardness minerals
  • 1" inlet/outlet valve
  • 16-24 gpm flow rate

*Available in metered, time clock, and digital heads

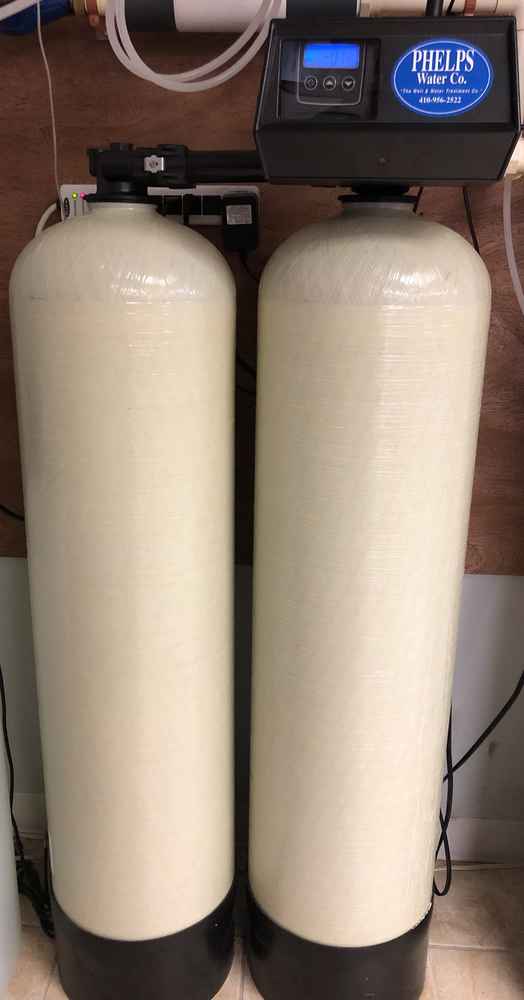

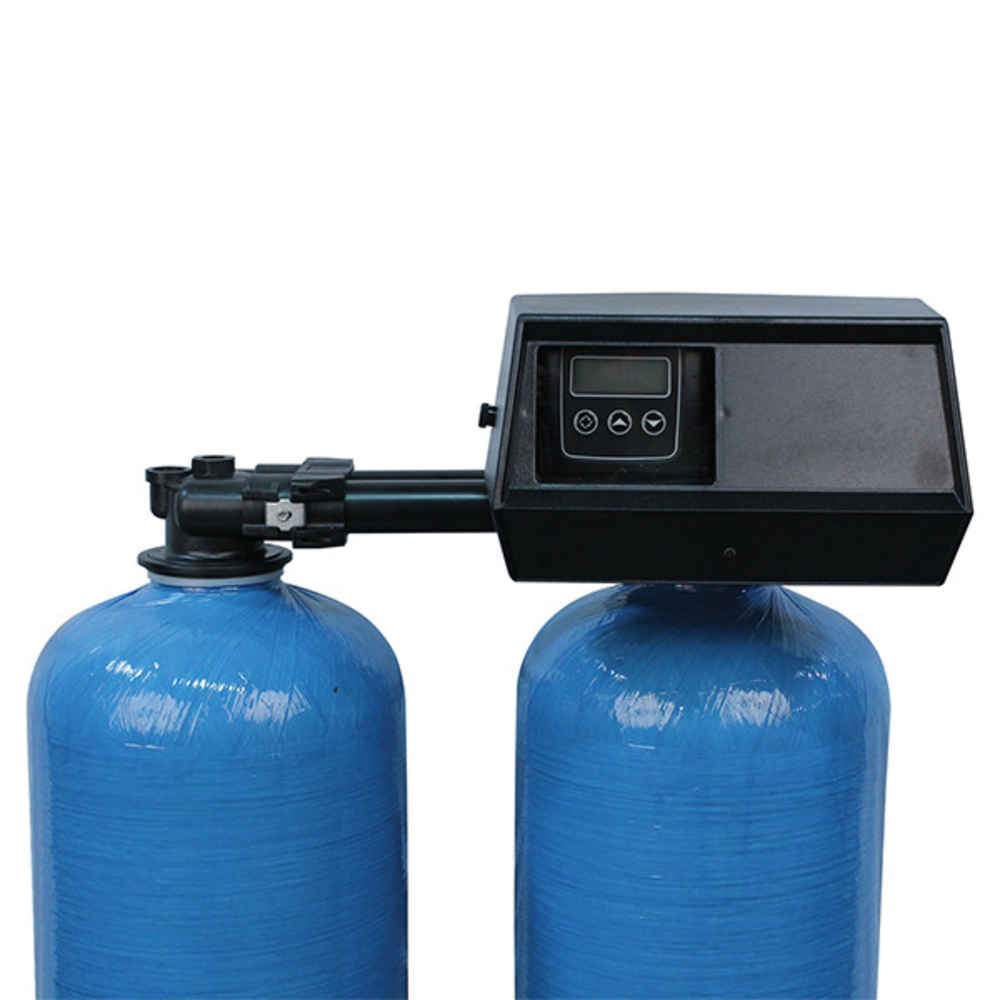

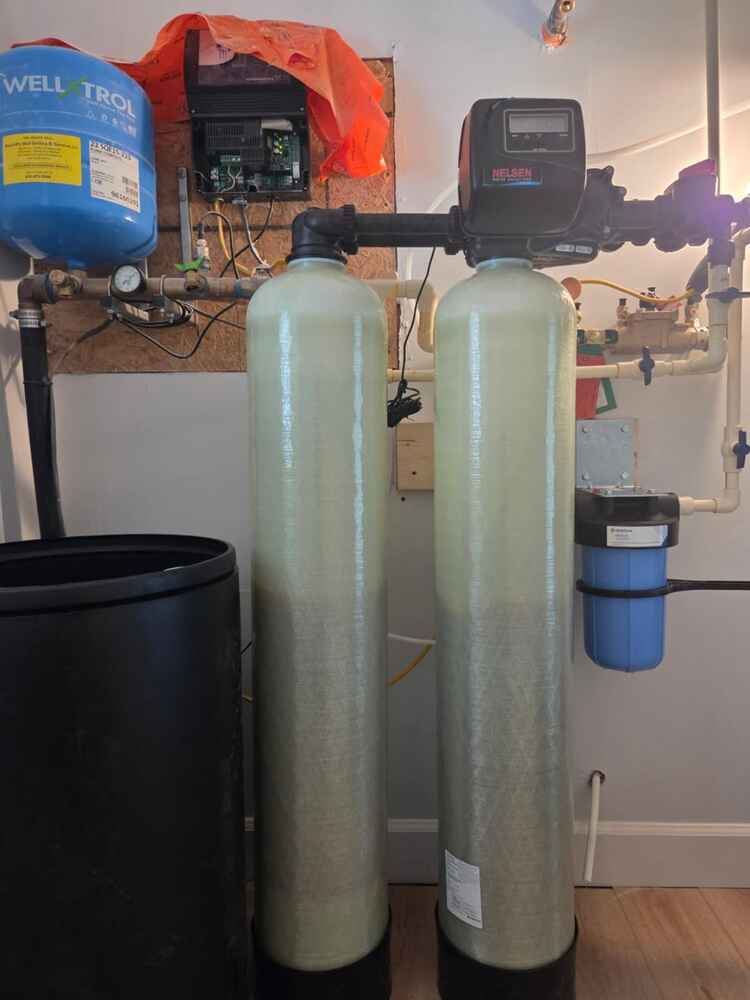

9100 Twin Digital System

  • Twin Tank alternating water softener
  • Tanks Sizes: Range from 10" to 24" in diameter
  • 24 Hours of Treated water for high usage areas
  • Cubic Feet used ranges based on size of tank installed
  • Treats: High iron and hardness minerals
  • 3/4", 1" or 1-1/2" inlet/outlet control valve
  • 23-26 gpm flow rate

*Great for house and outside irrigation systems.

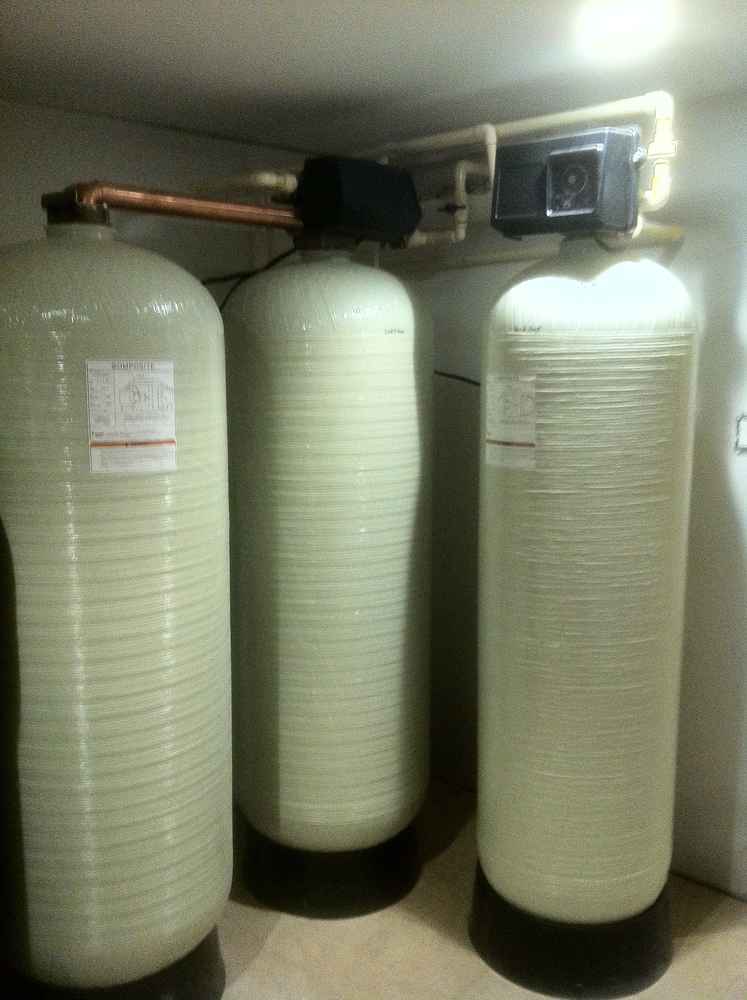

9500 Twin system / Commercial System

  • Twin Tank alternating water softener
  • Tanks Sizes: Range from 10" to 24" in diameter
  • 24 Hours of Treated water for high usage areas
  • Cubic Feet used ranges based on size of tank installed
  • Treats: High iron and hardness minerals
  • Commercial System using a 1-1/2" inlet/outlet control valve
  • 40-55 gpm flow rate

*Great for house and outside irrigation systems.

*Commercial Brine tanks sold to work in accordance with the larger tanks
